ActiveXperts Network Monitor ships with a powerful set of pre-defined checks. Each individual check has a static number of configuration items. To monitor other items, or to combine monitoring items, you can make use of custom PowerShell checks.

Most of the built-in checks have a PowerShell equivalent, implemented as a PowerShell (.ps1) script file. Out-of-the-box, each PowerShell script monitors the same items as the built-in check. Feel free to modify the script.

To add a new PowerShell-based MsHyperVServer monitoring check, do the following:

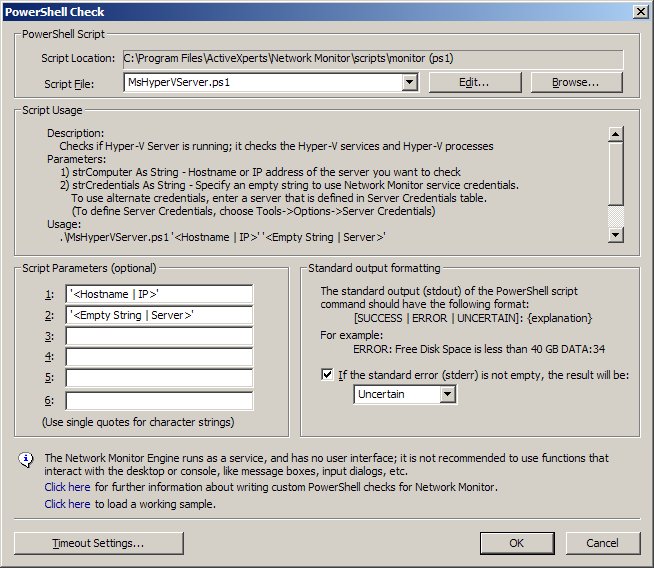

• On the 'Monitor menu', open 'New Monitoring Check (Script)' and choose 'New PowerShell Check'. The 'PowerShell Check' dialog box appears;
• In the 'Script File' selection box, select 'MsHyperVServer.ps1';
• In the 'Script Parameters'group box enter the required parameters. You can also load a working sample first by clicking on the 'Click here to load a sample' link.

To customize the above monitoring check, click on the 'Edit button' next to the 'Script File' selection box. Notepad will be launched. You can now make changes to the PowerShell script.

MsHyperVServer.ps1 script source code

# Network Monitor web site at https://www.activexperts.com
#################################################################################
# Script:
#     MsHyperVServer.ps1
# Description:
#     Checks if Hyper-V Server is running; it checks the Hyper-V services and Hyper-V processes
# Parameters:
#     1) strComputer As String - Hostname or IP address of the server you want to check
#     2) strCredentials As String - Specify an empty string to use Network Monitor service credentials.
#         To use alternate credentials, enter a server that is defined in Server Credentials table.
#         (To define Server Credentials, choose Tools->Options->Server Credentials)
# Usage:
#     .\MsHyperVServer.ps1 '<Hostname | IP>' '<Empty String | Server>'
# Sample:
#     .\MsHyperVServer.ps1 'localhost' ''
#################################################################################

#parameters

param
  (
    [string]$strComputer,
    [string]$strCredentials
  )

##Start Functions##
Function CheckService($strServiceName)
{
  Foreach ( $objService in $objWmi )
  {
    if ( $objService.Name.ToLower() -eq $strServiceName.Tolower() )
    {
      return 1
      break
    }
  }

  return 0
}
##End Functions##

if ( [string]$strComputer -eq "" )
{
  $res = "UNCERTAIN:  Invalid number of parameters - Usage: .\MsActiveDirectory.ps1 '<Hostname | IP>' '<Empty String | Server>'"
  echo $res
  exit
}

# Create object
if( [string]$strCredentials -ne ""  )
{
  $objNmCredentials = new-object -comobject ActiveXperts.NMServerCredentials
  $strLogin = $objNmCredentials.GetLogin( $strCredentials )

  if ($strLogin -eq "")
  {
    $res = "ERROR: No alternate credentials defined for [" + $strCredentials + "]. In the Manager application, select 'Options' from the 'Tools' menu and select the 'Server Credentials' tab to enter alternate credentials"
    echo $res
    exit
  }

  $strPassword = $objNmCredentials.GetPassword( $strCredentials )

  if($strPassword -ne "")
  {
    $strPasswordSecure = ConvertTo-SecureString -string $strPassword -AsPlainText -Force
  }
  $objCredentials = new-object -typename System.Management.Automation.PSCredential $strLogin, $strPasswordSecure
}

#############################Services#######################################
if ([string]$strCredentials -eq "")
{
  $objWmi = Get-WmiObject -ComputerName $strComputer -Class Win32_Service -filter "state = 'running'"
}
else
{
  $objWmi = Get-WmiObject -ComputerName $strComputer -Class Win32_Service -Credential $objCredentials -filter "state = 'running'"
}

if ( $objWmi -eq $null )
{
  $res = "UNCERTAIN: Win32_Service class does not exist on computer [" + $strComputer + "]."
  echo $res
  exit
}

$bResult = CheckService "nvspwmi"
if ( $bResult -eq 0 )
{
  $res = "ERROR: Service: nvspwmi (Hyper-V Networking Management Service) is not running on server[" + $strComputer + "]."
  echo $res
  exit
}

$bResult = CheckService "vhdsvc"
if ( $bResult -eq 0 )
{
  $res = "ERROR: Service: vhdsvc (Hyper-V Image Management Service) is not running on server[" + $strComputer + "]."
  echo $res
  exit
}

$bResult = CheckService "vmms"
if ( $bResult -eq 0 )
{
  $res = "ERROR: Service: vmms (Hyper-V Virtual Machine Management) is not running on server[" + $strComputer + "]."
  echo $res
  exit
}

$objWmi = $null
if ( $bResult -eq 1 )
{
  $res = "SUCCESS: All services are running."
  echo $res
  exit
}
else
{
  $res = "ERROR: Some services are not running."
  echo $res
  exit
}
