Using ActiveXperts Serial Port Component with Visual Basic 6.x

ActiveXperts Serial Port Component is a software development kit (SDK) that enables the user to communicate to a device over a serial interface.

Such a device can be: a weight indicator, a modem, a scanner, or any other device that is equiped with a serial port. It can even be another PC, connected via a NULL modem cable.

ActiveXperts Serial Port Component features the following:

Direct COM port support (like 'COM1')
TAPI (Windows Telephony Device) support (like 'Standard 56000 bps Modem');
Support for RS-232/RS422/RS485, up to 256 simultaneous ports;
Support for all types of Hayes compatible modems;
Support for serial cable as well as USB cable or Bluetooth connections;
Support for Virtual COM ports (i.e. COM ports redirected through the network);
Hardware flow control (RTS/CTS, DTR/DSR) and software flowcontrol (XON/XOFF) support;
Configurable baudrate/parity/stopbits, full buffered data transfer, text/binary data transfer.

Step 1: Download and install the ActiveXperts Serial Port Component

Download the ActiveXperts Serial Port Component from the ActiveXperts Download Site and start the installation. The installation guides you through the installation process.

Step 2: Create a new Visual Basic project

Launch 'Microsoft Visual Basic' from the Start menu, and choose 'New' from the 'File Menu'. The 'New Project' dialog appears.

Select 'Standard Exe' and click 'OK':

(Click on the picture to enlarge)

Step 3: Refer to the ActiveXperts Serial Port Component Library and create the objects

A new Project is created, with a blank form.

First, you must add a reference to Serial Port Component in the project to be able to use the object. To do so, choose 'References...' from the 'Project' menu. In the 'References' dialog that pops up, enable the 'Serial Port Component 2.2 Type Library' reference as shown in the following picture:

(Click on the picture to enlarge)

Click 'OK' to close the 'References...' dialog.

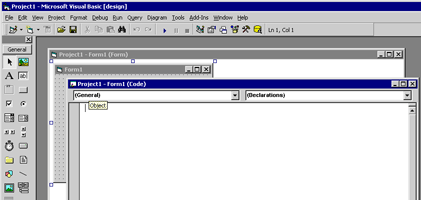

Then, select the Project form and choose 'View Code' from the context menu:

(Click on the picture to enlarge)

On top of your code, declare the following object:

Public objComport As AxSerial.ComPort

Step 4: Create the object

From the Code window, select 'Form'. The Private Sub 'Form_Load()' will be displayed now.

In the 'Form Load' function, create the object in the following way:

Set objComport = CreateObject("AxSerial.ComPort")

Step 5: Send an AT command to a connected Hayes compatible modem

You can now send and/or receive data to and/or from a serial device.

The following code shows how to query a modem:

' !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
' DO NOT FORGET: ADD A REFERENCE TO THE SERIAL PORT COMPONENT LIBRARY FROM THE PROJECT->REFERENCE
' !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

Public lTimerID As Long
Public objComport As AxSerial.ComPort

Private Sub buttonSubmit_Click()
    textReceived = ""
    objComport.WriteString (textSend)

    GetResult
End Sub

Private Sub buttonView_Click()
    If FileExists(textLogfile.Text) = True Then
    Shell "notepad " + textLogfile.Text, vbNormalFocus
    End If
End Sub

Private Sub CheckDTR_Click()

    objComport.RaiseDTR (CheckDTR.Value)
    GetResult

End Sub

Private Sub CheckRTS_Click()

    objComport.RaiseRTS (CheckRTS.Value)
    GetResult

End Sub

Public Function FileExists(sFileName As String) As Boolean
  FileExists = CBool(Len(Dir$(sFileName))) And CBool(Len(sFileName))
End Function

Private Sub Form_Load()
    textSend = "AT"

    Set objComport = CreateObject("AxSerial.ComPort")

    objComport.ComTimeout = 100

    For i = 0 To objComport.GetDeviceCount() - 1
        comboDevice.AddItem (objComport.GetDevice(i))
    Next

    comboDevice.AddItem "COM1"
    comboDevice.AddItem "COM2"
    comboDevice.AddItem "COM3"
    comboDevice.AddItem "COM4"
    comboDevice.AddItem "COM5"
    comboDevice.AddItem "COM6"
    comboDevice.AddItem "COM7"
    comboDevice.AddItem "COM8"

    comboDevice.ListIndex = 0

    comboSpeed.AddItem "Default"
    comboSpeed.AddItem "110"
    comboSpeed.AddItem "300"
    comboSpeed.AddItem "600"
    comboSpeed.AddItem "1200"
    comboSpeed.AddItem "2400"
    comboSpeed.AddItem "4800"
    comboSpeed.AddItem "9600"
    comboSpeed.AddItem "14400"
    comboSpeed.AddItem "19200"
    comboSpeed.AddItem "38400"
    comboSpeed.AddItem "57600"
    comboSpeed.AddItem "64000"
    comboSpeed.AddItem "115200"
    comboSpeed.AddItem "128000"
    comboSpeed.AddItem "256000"

    comboSpeed.ListIndex = 0

    comboHWFlowControl.AddItem "Default"
    comboHWFlowControl.AddItem "Disable"
    comboHWFlowControl.AddItem "Enable"

    comboHWFlowControl.ListIndex = 0

    comboSWFlowControl.AddItem "Default"
    comboSWFlowControl.AddItem "Disable"
    comboSWFlowControl.AddItem "Enable"

    comboSWFlowControl.ListIndex = 0

    comboDataFormat.AddItem "Default"
    comboDataFormat.AddItem "8,n,1"
    comboDataFormat.AddItem "7,e,1"

    comboDataFormat.ListIndex = 0

    textReceived = ""

    EnableControls

End Sub

Private Sub buttonOPEN_Click()

    objComport.Device = comboDevice.List(comboDevice.ListIndex)

    If (comboSpeed.Text = "Default") Then
        objComport.BaudRate = 0
    Else
        objComport.BaudRate = comboSpeed.Text
    End If

    objComport.LogFile = textLogfile.Text

    objComport.HardwareFlowControl = comboHWFlowControl.ListIndex
    objComport.SoftwareFlowControl = comboSWFlowControl.ListIndex

    If (comboDataFormat.ListIndex = 0) Then
        objComport.DataBits = objComport.asDATABITS_DEFAULT
        objComport.StopBits = objComport.asSTOPBITS_DEFAULT
        objComport.Parity = objComport.asPARITY_DEFAULT
    End If


    If (comboDataFormat.ListIndex = 1) Then
        objComport.DataBits = objComport.asDATABITS_8
        objComport.StopBits = objComport.asSTOPBITS_1
        objComport.Parity = objComport.asPARITY_NONE
    End If


    If (comboDataFormat.ListIndex = 2) Then
        objComport.DataBits = objComport.asDATABITS_7
        objComport.StopBits = objComport.asSTOPBITS_1
        objComport.Parity = objComport.asPARITY_EVEN
    End If

    objComport.Open

    GetResult

    EnableControls

End Sub

Private Sub buttonClose_Click()
    objComport.Close

    GetResult

    EnableControls
End Sub


Private Sub Form_Unload(Cancel As Integer)
    Timer1.Enabled = False
End Sub

Private Sub EnableControls()

    Dim bOpened

    bOpened = objComport.IsOpened

    CheckDTR.Enabled = bOpened
    CheckRTS.Enabled = bOpened
    checkCTS.Enabled = bOpened
    checkDCD.Enabled = bOpened
    checkRI.Enabled = bOpened
    checkDSR.Enabled = bOpened
    buttonOpen.Enabled = bOpened + 1
    buttonClose.Enabled = bOpened
    buttonSubmit.Enabled = bOpened

    Timer1.Enabled = bOpened

End Sub

Private Sub linkErrorCodes_Click()
    Shell "Explorer https://www.activexperts.com/support/errorcodes/"
End Sub

Private Sub linkWebsite_Click()
    Shell "Explorer https://www.activexperts.com"
End Sub

Private Sub Timer1_Timer()
    Dim strString

    strString = objComport.ReadString

    If (strString <> "") Then
        textReceived = textReceived & strString & vbCrLf
    End If

    checkDCD.Value = Abs(objComport.QueryDCD)
    checkCTS.Value = Abs(objComport.QueryCTS)
    checkDSR.Value = Abs(objComport.QueryDSR)
    checkRI.Value = Abs(objComport.QueryRI)

End Sub

Private Sub GetResult()
    If objComport.LastError = 0 Then
        textResult.Caption = "SUCCESS"
    Else
        textResult.Caption = "ERROR " & objComport.LastError & " ( " & _
          objComport.GetErrorDescription(objComport.LastError) & " )"
    End If
End Sub

You can download the full samples here.
